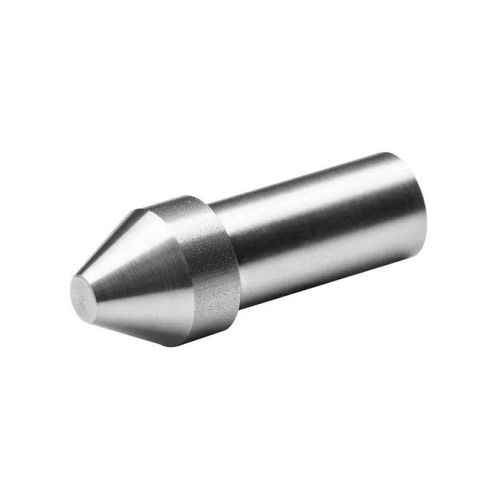

Plug (9063)



Connection: Cone and thread.
Design pressure: 1.500 bar/21.500psi
Max. working pressure: 1.500 bar/21.500psi
Operating temperature: -60°C to +200°C
Material: 1.4404 / AISI316L

To be used with item#: 9061 Gland.

Data sheet for download:
Product details
Item number: Dia Ø Tube O.D. D inch. Max. working pres. Length mm:
9063 1/4 9,52 1/4 1500 29,0
9063 3/8 12 3/8 1500 32,0
9063 9/16 18,2 9/16 1500 34,7
9063 3/4 24 3/4 1500 44,5
9063 1 31,6 1 1500 51,0
'
