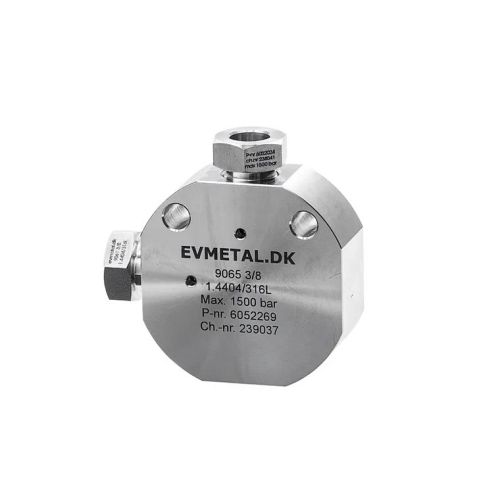

Elbow coupling (9065)
Elbow coupling (9065)

Elbow coupling (9065)



Connection: Cone and thread.
Design pressure: 1.500 bar/21.500psi
Max. working pressure: 1.500 bar/21.500psi
Operating temperature: -60°C to +200°C
Material: 1.4404 / AISI316L

Data sheet for download:
Product details
Item number: Tube O.D. D inch.  Tube O.D. D1 inch. Max. working pres. Length mm: Width: Height mm
9065 1/4 1/4 1/4 1500 39,1 16,0 39,1
9065 3/8 3/8 3/8 1500 50,8 20,0 50,8
9065 9/16 9/16 9/16 1500 63,5 26,0 63,5
9065 3/4 3/4 3/4 1500 76,2 35,0 76,2
'
