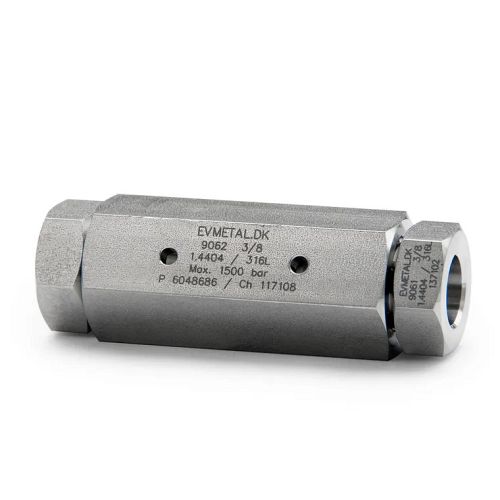

Straight coupling (9062)
Straight coupling (9062)

Straight coupling (9062)



Connection: Cone and thread.
Design pressure: 1.500 bar/21.500psi
Max. working pressure: 1.500 bar/21.500psi
Operating temperature: -60°C to +200°C
Material: 1.4404 / AISI316L

Product details
Item number: Tube O.D. D inch.  Tube O.D. D1 inch. Width mm: Length mm:
9062 1/4 1/4 1/4 17,5 41,00
9062 3/8 3/8 3/8 22,5 44,50
9062 3/8x1/4 3/8 1/4 22,5 40,25
9062 9/16x1/4 9/16 1/4 22,5 47,50
9062 9/16x3/8 9/16 3/8 27,0 51,00
9062 9/16 9/16 9/16 27,0 54,00
9062 3/4x9/16 3/4 9/16 36,0 59,00
9062 3/4 3/4 3/4 36,5 63,50
9062 1 1 1 50,0 88,90
'
