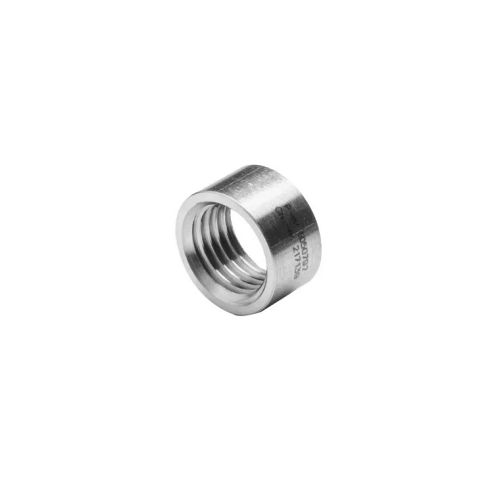

Collar (9060)

Connection: Cone and thread.
Design pressure: 1.500 bar/21.500psi
Max. working pressure: 1.500 bar/21.500psi
Operating temperature: -60°C to +200°C
Material: 1.4404 / AISI316L

This collar is used with item #: 9061 Gland.

Data sheet for download:
Product details
Item number: Diameter: Ø mm Tube: O.D. inches Max working pres. Length: mm
9060 3/8 12 3/8" 1500 6,4
9060 9/16 20 9/16" 1500 8,1
9060 3/4 24 3/4" 1500 9,8
9060 1 31,6 1" 1500 12,7
'
